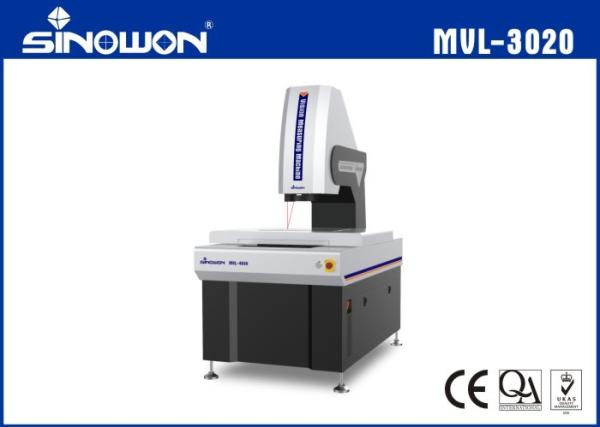

High Accuracy 2.5D Laser-Scanning Auto Vision Measuring Machine MVL Series

Product Characteristics:

1. Four-axis CNC fully auto close loop control, auto measurement;
2. “00” grade “JINANQING”marble base and pillar, stable and reliable;
3. Precision linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position;
4. High precision linear scale, resolution is 0.5um, high accuracy, great stability;
5. Imported high definition color industry digital camera, ensure clear observation and stable measurement requirement;
6. 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
7. Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
8. With proprietary powerful function fully auto measuring software iMeasuring 4.2;
9. With imported touch probe, realize 3D measurement;
10. Can set auto measurement, and finish batch measurement with high efficient;
11. Laser, coaxial illumination and other parts are optional;
12. Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Specifications:

*L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

Magnification is approximate value, it is related to the dimension of monitor and resolution.
Customers can choose 0.5X or 2X optional objective, and realize image magnification: 13X~86X or 52X~344X.
