    DVS-0880 Stereoscopic Microscopes With Parallel Optical Zoom System

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : DVS-0880
    Certification : CE
    Payment Terms : T/T in advance
    Supply Ability : 100 sets per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    DVS-0880 Stereoscopic Microscopes With Parallel Optical Zoom System


    DVS-0880 Stereoscopic Microscopes With Parallel Optical Zoom System


    Application:


    * Surface Analysis

    * Telecom & Electronics

    * Metal Manufacturing

    * Plastic Manufacturing

    * Telescope optics

    * Implants/ Protheses


    Specification:


    DVS-0880

    Optical System

    Parallel optical zoom system

    Zoom Objective

    0.8X~8X

    Viewing Head

    Binocular head, 20°inclined,Interpupilary distangce 55-75mm

    Optional Tilting binocular eyepiece tube, 0-35°inclined, Interpupilary distangce 55-75mm

    Objective

    Wd:78mm 1X Plan achromatic objective

    Optional Wd:276mm 0.3X Achromatic objective

    Optional Wd:195mm 0.5X Achromatic objective

    Optional Wd:126mm 0.5X Plan apochromatic objective

    Optional WD:32.5mm 2X Plan achromatic objective

    Eyepiece

    Eyepiece for Main Viewing Head 10X/Φ22

    Eyepiece for Side Viewing Head 10X/Φ22

    Pointer

    Red and Green LED

    Light Source

    Optional Ring illumination(LED,fluorescent)

    Working Distance

    78mm

    Focusing Range

    215mm

    Base Stage

    420mm×350mm

    Toughened glass
    stage

    250mmx250mm

    Optional
    Accessories

    Coaxial illumination

    Epi-fluorescent attachment

    Iris diaphragm

    Beamsplitter(one port)

    Beamsplitter(two ports)

    Photography & video attachment

    Micrometter

    LCD Attachment

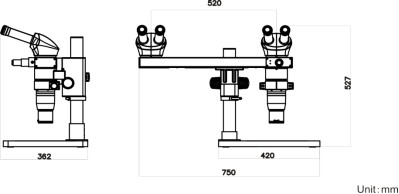

    Dimension:

    DVS-0880 Stereoscopic Microscopes With Parallel Optical Zoom System
