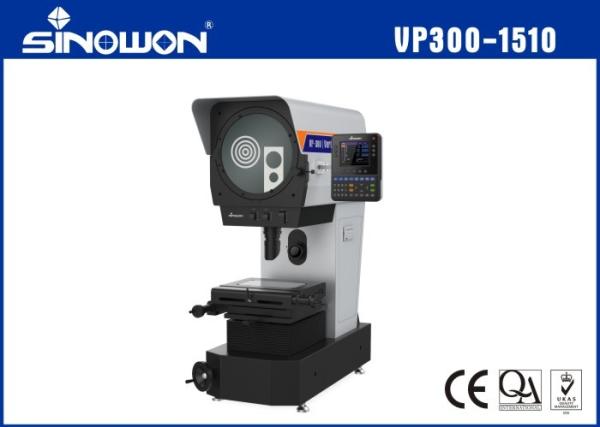

VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb

    Buy cheap VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb from wholesalers

    Buy cheap VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb from wholesalers
    • Buy cheap VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb from wholesalers

    VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : VP300-1510
    Certification : CE
    Payment Terms : T/T in advance
    Supply Ability : 100 sets per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb


    VP300-1510 Vertical Profile Projectors High-luminance Halogen Bulb


    Brief Introduction:


    Profile projector VP300 is precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer. It is widely used in the field of mechanism, meter, electronic, rubber industry for quality control.


    Product Features:

    • Lifting system with linear dual rail and non-interference nut makes it more convenient and stable for lift driving;

    • With coating processreflector, more clear image and better dust-proof effect;

    • Adjustable 256-grades surface and contour illumintation, can meet with measuring request for different workpiece;

    • With imported highlight, durable halogen tungsten lamp to meet with long working time;

    • High quality optical system, clear image and magnification error is less than 0.08%.


    Technical Specification:


    The Technical Specification of Ø300mm Digital Vertical Profile Projector VP300 Series

    Reverse Image

    VP300-1510 (#511-330)

    Working Stage Size

    350x202mm

    Glass Stage Size

    196x120mm

    Stage Travel

    150x100mm

    Focus Travel

    90mm (for focusing)

    Accuracy

    ≤3+L/100(um)

    Resolution of X and Y-scale

    0.0005mm

    Max. Load Capacity

    5Kg

    Screen

    Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)

    Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01°

    Digital Readout

    DP400 (561-400) Multifunctional Data Processing System

    Illumination

    24V/150W Adjustable Halogen Lamp

    Temperature

    Room Temperature: 20℃±5℃,Relative humidity: 40%-70%RH

    Cooling System

    Forced Cooling (3-axis-fans)

    Power Supply

    AC110V/60Hz; 220V/50Hz,650w

    Dimension(L×W×H)

    694x380x1065mm

    Packing Dimension

    990x765x1340mm

    Gross/Net weight

    210/165kg

    Objectives:


    Magnification

    10x

    20x

    50x

    100x

    Field of View

    φ30mm

    φ15mm

    φ6mm

    φ3mm

    Working Distance

    75mm

    69mm

    44mm

    26mm


    Standard Delivery:


    Product Name

    Code #

    Product Name

    Code #

    Product Name

    Code #

    Digital Readout DP400

    561-340

    VP300-10x

    Objective

    511-110

    Screen Clamp

    Device

    581-340

    Built-in Mini-printer

    581-900

    Transmitted lens

    511-210

    Operation Manual

    VP300

    Optional Accessories:


    Product Name

    Code #

    Product Name

    Code #

    Product Name

    Code #

    Measuring Software

    581-101

    Rotary Table RT1

    581-510

    Rotary Table RT2

    581-520

    VP300-20x

    Objective

    511-120

    VP300-50x

    Objective

    511-130

    VP300-100x

    Objective

    511-140

    Holder Clamp

    581-840

    V-shape Clamp

    581-831

    Swivel Center Support

    581-851

    Working Cupboard ST2

    581-620

    Over-Chart ST 140

    581-311

    Foot-Switch

    ST 150

    581-351
