    2.5D Automatic Vision Measuring Machine AutoVision Series

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : AutoVision
    Certification : CE
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    2.5D Automatic Vision Measuring Machine AutoVision Series


    2.5D 5A Automatic Vision Measuring Machine AutoVision Series


    Application:

    Cutting, touch screen, mobile phones, medical equipment, PCB, Film, electronic carrier tape, rubber, clocks, gears, mechanical processing, automobile and motorcycle parts, bearings, motors, precision hardware, tools, electronic components and other industries and research institutes, universities, institutions and enterprises measurement measuring laboratory and production line size detection products.


    Products Characteristic:

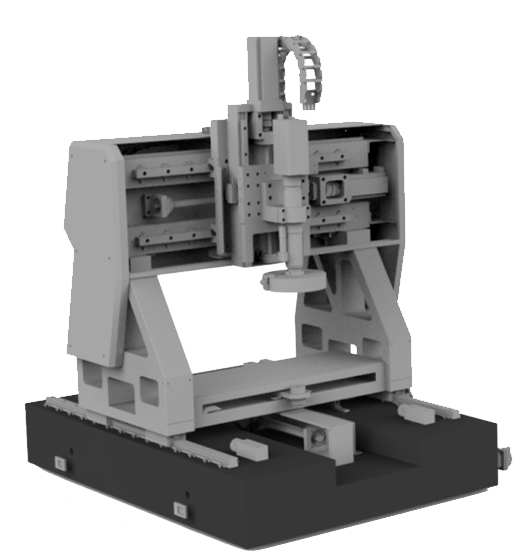

    • High precision Jinan Qing marble base, beams and gantry mechanical structure, to ensure high measurement speed, stability and accuracy.
    • High precision imported guide screw, precision grinding stage ball screw and servo motor, to ensure the stability of position accuracy with high speed motion.
    • High accuracy imported non-contact gold plated steel grating measurement system and high accuracy working stage, to ensure accuracy within≤3+L/200mm;
    • High definitive imported 1/3 inch color camera and HD automatic continuous zoom lens, to ensure clear and real image without distortion.
    • With programmable formula 5-Ring 8-division surface LED cold illumination, contour parallel LED cold illumination and coaxial illumination, internal intelligent light adjustment, it can automatically memorize illumination and brightness;
    • With powerful function iMeasuring4.1 automatically measuring software, it can program automatic measurement and enhance quality control to a new level;
    • Optional imported contact probe and 3D Measuring Software, which help to update the machine to be Fully Auto contact 3D Measuring Machine;
    • Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.


    Technical Specification

    Product Name2.5D Fully AutoVision Measuring Machine
    ModelAutoVision652
    Code#520-141
    X/Y-axis Travel(mm)600x500mm
    Z-axis Travel(mm)200mm

    X/Y/Z 3-axis

    Linear Scale(mm)

    Imported Open Linear Scale, resolution:0.0005mm
    Guidance ModeImported H grade Linear Guide,Double-Track Double Slider Guide
    Operation ModeJoystick controller, Mouse operation, automatic detection program
    Measurement AccuracyXY-axis:≤2.5+L/200(um)
    Z-axis:≤5+L/200(um)
    Repeatability±2um
    Video System1/2" Color CCD Camera

    6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X,

    Video Magnification: 20X~129X(21.5”monitor)

    Field of View(mm)

    (Diagonal *

    Horizontal*Vertical)

    Lens Magnification0.7x1x2.0x3.0x4x4.5x
    1/2"CCD11.x9.1x6.88x6.4x4.84x3.2x2.42.6x2.1x1.62x1.6x1.21.78x1.42x1
    IlluminationContourLED Parallel Contour Illumination
    Surface5-ring 8-division 0~255 grade continue adjustable
    Software SystemiMeasuring 4.1 Fully Auto Measuring Software
    Load Capacity30Kg
    Working EnvironmentTemperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz
    Power220V/50Hz/10A
    Dimension1600*1050*1680mm
    Weight1380Kg

    * L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

    **Magnification is 2.5D Automatic Vision Measuring Machine AutoVision Seriesapproximate value, it is related to the dimension of monitor and resolution.

    Customers can choose 0.5X or 2X optional objective, and realize image magnification: 10X~64.5X or 40X~258X.


    2.5D Auto Vision 542.pdf
