    Digital Toolmakers Microscope For Measuring Connect DRO DP400 High Accuracy

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : STM1050
    Certification : CE
    Price : Negotiation
    Payment Terms : D/P, L/C, D/A, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Digital Toolmakers Microscope For Measuring Connect DRO DP400 High Accuracy


    Digital Toolmakers Microscope For Measuring Connect DRO DP400 High Accuracy


    Characteristics:

    • Precision working stage travel:100 x50mm;
    • High precision linear scale : 0.5um;
    • Color screen multifunctional digital readout : DP400;

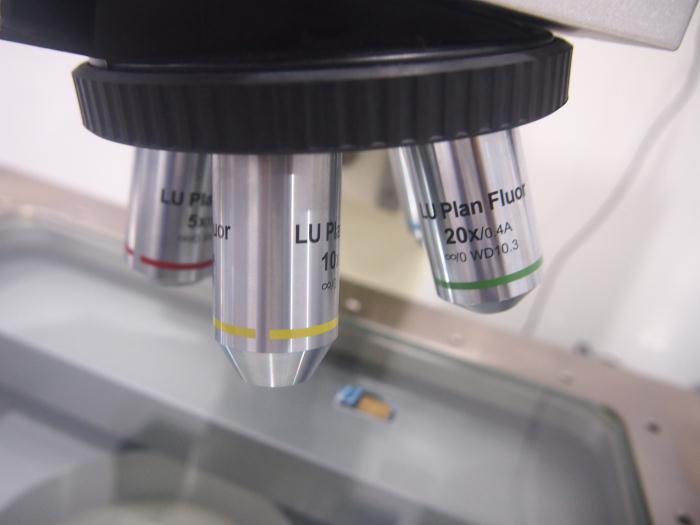

    • Optical objective with adjustable LED ring reflector illumination;
    • With high accuracy and high stability.

    Application:

    It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.




    Specification:


    ModelSTM-1050
    Code#531-130
    Metall Stage Size252×252mm
    Glass Stage Size196×96mm
    Resolution0.5um
    Measuring Accuracy≤5um
    Measuring DeviceDigital Readout DP400
    Max.Height of Specimen115mm
    Max.Weight of Specimen5Kg
    Max.Magnification150×(Φ0.13mm)(15×Eyepiece+10×Objective)
    Min.Magnification20×(Φ6.5mm)(10×Eyepiece+2×Objective)
    Standard Magnification30×(Φ0.13mm)(15×Eyepiece+2×Objective)
    Standard Working Distance67mm

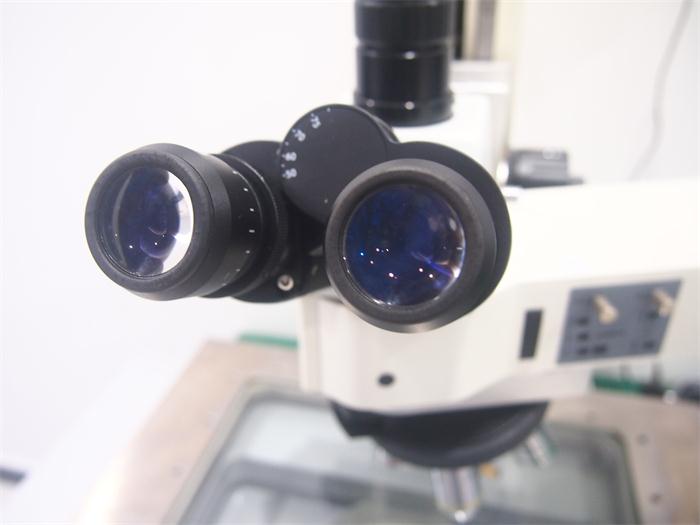

    Optical TubeMonocular with 30°depression angle
    15×Eyepiece with Crossline Reticle
    EyepieceWF15/13
    ObjectiveMagnification:2×
    Working Distance:2.638"(67mm)
    Eyepiece Protractor Range360°
    Eyepiece Protractor Graduation
    Vernier Angle Reading6’
    Contour IlluminationLight source:Tungsten bulb(24V;2W)
    Surface IlluminationRing LED illumination brightness adjustable
    Power SupplyAC110V/60Hz;220V/50Hz
    Dimension(D×W×H)415×315×420mm
    Packing Dimension(D×W×H)210×333×391mm
    Gross/Net Weight30Kg/25Kg
