    Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : VM-100
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

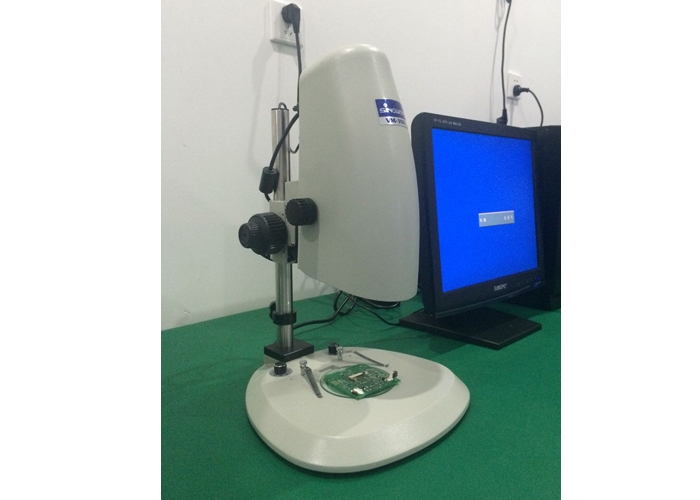

    Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification


    High magnification Coarse Fine Adjustment Zoom Digital Video Microscope


    Product features:

    This Video Microscope is a good substitute for a traditional optical magnifier, stereo microscpe, comparing microscope, video measurement system and micro-photographing instrument. It can also connect to image analysis software and the images of on-site evidence samples can be captured, inspected, compared and measured, and the on-site scene can enter the micro-world instantly.


    Technical Specification:


    Product NameVideo Microscope System
    ModelVM-100
    Zoom Lens

    0.7X ~ 4.5X Detented Zoom Lens
    Zoom Ration 6.5:1

    Z-axis Travel

    Effective space 150mm;
    Adjustable Focus travel50mm;
    Working distance 85mm

    Microscope HolderPrecision coarse and fine adjustment
    IlluminationContinuous adjustable LED bottom light and LED surface light
    Video SystemBuilt-in FULLHD sensor , USB, VGA, SD card integrated camera
    Storage Capacity8G SD Memory Card
    VGA Industrial Camera1>> Simple graphic operation
    2>>Support USB and VGA sync-output, USB interface can connect to mouse and PC system
    3>>Take picture: 30 per second, picture can be made dynamic contract
    4>>Available to setup manual exposure time
    5>>Output function with cross line
    6>>200 million pixel
    Power SupplyAC90~240V;47~63HZ
    Dimension290*280*400 mm
    Packing Dimension445*410*355 mm
    Operation EnvironmentTemperature:5° -40°C (41° - 104°F)
    Max relative humidity:when temperature reaches 31°C (88°F), it is 80%, when temperature reaches 34°C (93°F), linear decrease 70%,when temperature reaches 37°C (99°F), it is 60%,when temperature reaches 40°C (104°F), it is 50%
    Voltage fluctuation:±10%
    Pollution level:2 (according to IEC664)
    Classification of installation voltage:II(IEC664)


    VM-100 Video Microscope.pdf
