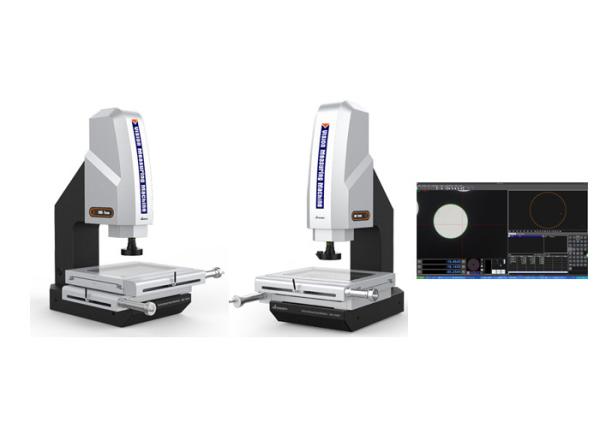

Effecient Video Inspection System RS232 Data Cable PC System

Technical Specification:

1. Mode: iMS-5030F

2. Code#:5 21-180F

3. Metal Table: 708x470mm

4.Glass Table: 556x348mm

5. X/Y-axis Travel: 500x300mm

6. Z-axis Travel: Working travel 200mm

7. X/Y/Z-axis Travel: 0.0005mm

8. X/Y-axis Accuracy: ≤3+L/200(um)

9. Repeatability: 3um

10. Dimension(W*D*H): 1002x867x1043mm

11. Net Weight: 380Kg

Introduction:

1. Can be upgraded to 3D with addition of Touch Probe;

2. Laser indicator can point current measuring position accurately;

3. Can do height measurement with Z axis optical ruler;

4. The measuring data can be directly output into Word, Excel & AutoCAD.

Standard Delivery:

Optional Accessories:
