    Contact Probe Industry Video Measuring Machine Inspection System

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : iMS-2515P
    Certification : CE
    Payment Terms : 100% T/T In Advance
    Supply Ability : 100 sets per month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

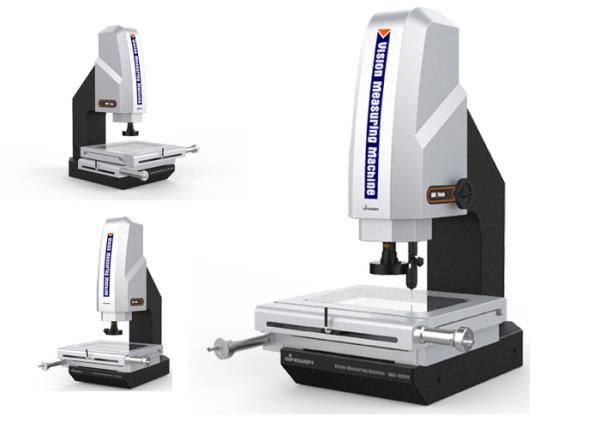

    Contact Probe Industry Video Measuring Machine Inspection System


    Contact Probe Industry Video Measuring Machine Inspection System


    Application:


    It is used for inspection and measurement of small precision manufactured parts.


    Features:


    1. High Speed highly enhance excellent production efficiency;


    2. High performance touch probe extend the measurement application;


    3. Increased Control over Quality Management;


    4. Measures dimensions accuracy is within 3+L/200(um).


    Technical Specification:

    Mode

    iMS-2515P

    Code#

    521-150P

    Metal Table

    408x308mm

    Glass Table

    306x198mm

    X/Y-axis Travel

    250x150mm

    Z-axis Travel

    High-precision linear guide , working travel 200mm

    X/Y/Z-axis Travel

    0.0005mm

    X/Y-axis Accuracy

    ≤3+L/200(um)

    Repeatability

    3um

    Base and Pillar

    High Accuracy Jinan Qing Marble

    Illumination System(Software Adjustment)

    Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination

    Contour: LED Parallel Illumination

    LED Laser Navigation Lights

    CCD Camera

    High Resolution 700TV Color CCD Camera

    Zoom lens

    6.5:1 High Resolution Detented Zoom Lens

    Magnification:0.7X~4.5X;Video Magnification:24.5X~156X

    Working Environment

    Temperature:19°~24°

    Humidity:45% ~75%RH

    Vibration<0.002g,<15Hz

    Measuring Software

    iMeasuring 3.1

    Operation System

    Support XP,WIN7,WIN8.1,32/64 operating system

    Language

    English, Simplified Chinese, Traditional Chinese, other language versions can be added

    Dimension(W*D*H)

    790x617x1000mm

    Net Weight

    175Kg


    Standard Delivery:


    Product Name

    Code#

    Product Name

    Code#

    3D Measuring Software

    IM3.1

    Video Capture Card

    527-130

    Contour LED Parallel Illumination

    425-100

    DELL PC System

    581-960

    Surface 3R/8D LED Illumination

    425-130

    AV Video Cable

    581-940

    Laser Positioning System

    581-330

    RS232 Data Cable

    581-930

    6.5X Detented Zoom Lens

    421-100

    Optical Calibration Block

    581-800

    HD700TVL Color Camera

    484-130

    Operation Manual

    /


    Optional Accessories:


    Product Name

    Code#

    Product Name

    Code#

    Electronic Zoom Lens

    421-140

    Rotary Tables RT 2

    581-520

    12.5X Detented Zoom Lens

    421-100

    Rotary Tables RT 3

    581-530

    Coaxial Detented Zoom Lens

    421-120

    Working Cupboard ST 05

    581-650

    0.5X Auxiliary Objective

    423-050

    Swivel Center Support

    581-850

    2X Auxiliary Objective

    423-200

    Foot Switch

    581-350
