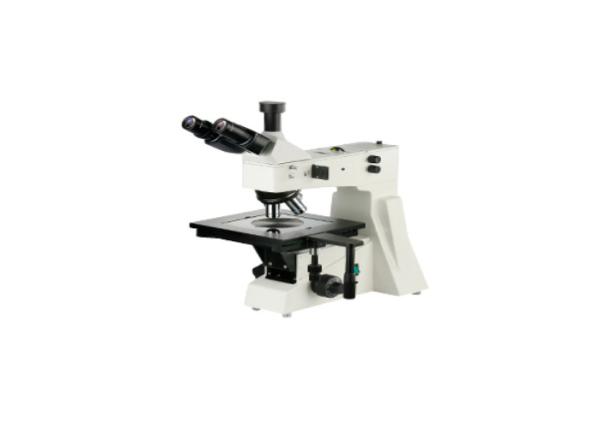

    Used In IT Industry Large Area Integrate Circuit Upright Metallurgical Microscope

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : UMS-350
    Certification : CE
    Payment Terms : T/T in advance
    Supply Ability : 100 sets per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    Used In IT Industry Large Area Integrate Circuit Upright Metallurgical Microscope


    Used In IT Industry Large Area Integrate Circuit Upright Metallurgical Microscope


    Charateristics:

    • It is widely used in IT Industry for Large Area Integrate Circuit ,Wafer Observation and Inspection;

    • Excellent Optical Quality with Infinite Optical System and LWD High Magnification Objective(40X/WD3.7mm)

    • Stage Speedy Movement by Hand to Get Observation Point Immediately;

    • Comfortable and enjoyable Operation with Pre Position Control Knob.


    Standard Delivery:


    Product Name

    Upright Metallurgical UMS-350(#432-153)

    Code#

    Eyepice

    Wide field WF10X(Ø22mm)

    432-523

    Objective

    Plan achromatic objective 5X/0.12/ WD:15.8mm

    Plan achromatic objective 10X/0.25/WD:10mm

    Plan achromatic objective 20X/0.40/WD:5.8MM

    Plan achromatic objective 40X/0.60/WD2.9mm

    Plan achromatic objective 80X/0.80/WD:0.2mm

    432-623

    432-633

    432-643

    432-653

    432-683

    Viewing Head

    Trinocular incline 30°,can be shot in 100% light flux

    432-503

    Nosepiece

    Quintuple9Backward ball bearing inner locating)

    432-603

    Focusing

    Coaxial coarse/fine focus system

    Range:24mm

    432-703

    Mechanical Stage

    Size:300X268mm,moving range:250mmX250mm

    432-403


    Optional Accessories:


    Product Name

    Code#

    Product Name

    Code#

    Dividing 10X(Ø22mm) 0.1mm/Div

    432*513

    CCD Adapter 1X

    431-731

    Inifinitive Plan achromatic objective40X/0.10(WD:17.8MM)

    432@673

    Inifinitive Plan achromatic objective50X/0.75(WD:0.32mm)

    432-693
