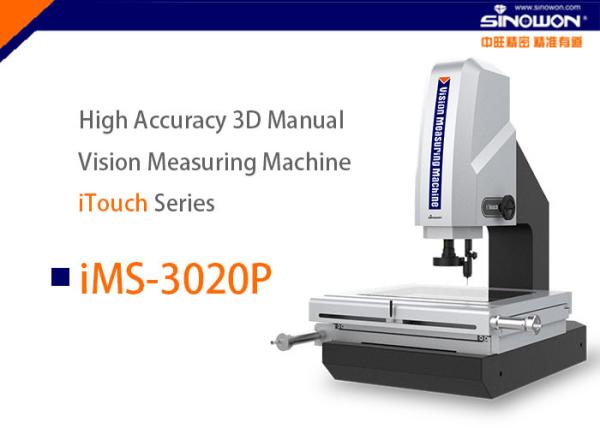

    250x150mm High Accuracy Semiautomatic Vision Measurement System iFocus Series

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : iMS-3020P
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    250x150mm High Accuracy Semiautomatic Vision Measurement System iFocus Series


    High Accuracy Semiautomatic Vision Measuring Machine iFocus Series,iMF-3020P

    Less error

    toothless rod and fast moving locking device, to ensure hysterisis error is within 2um;Jinan Qing marble base and pillar, to ensure high stability and accuracy;

    A grade optical linear scale with precision working stage, to ensure the accuracy is within 3+L/200um;

    Clear imageHigh definitive detented zoom lens and high resolution color digital camera, to ensure clear image without distortion
    Control the brightness automaticallyprogrammable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment
    Measuring SoftwareImported contact probe and powerful function iMeasuring3.1,highly enhance the quality control
    Reduce material consumptionOptional FexQMS Measuring Data Analysis and Real-time monitoring software

    Product NameCode#Product NameCode#
    Electronic Zoom Lens421-140Rotary Tables RT2581-520
    12.5X Detented Zoom Lens421-100Rotary Tables RT3581-530
    Coaxial Detented Zoom Lens421-120Working Cupboard ST05581-650
    0.5X Auxiliary Objective423-050Swivel Center Support581-850
    2X Auxiliary Objective423-200Foot Switch

    581-350


    ModeiMS-3020P
    Code#521-160P
    Metal Table458x358mm
    Glass Table356x248mm
    X/Y-axis Travel300x200mm
    Z-axis TravelHigh-precision linear guide , working travel 200mm
    X/Y/Z-axis Travel0.0005mm
    X/Y-axis Accuracy*≤3+L/200(um)
    Hysterisis Error2um
    Base and PillarHigh Accuracy Jinan Qing Marble
    Illumination System(Software Adjustment)Surface: Adjustable 0~255 grade 4-ring 8-division LED Cold Illumination, every division can be adjust independently
    Contour: LED Parallel Illumination
    LED Laser Navigation Lights
    CCD CameraHigh Resolution 700TV Color CCD Camera
    Zoom lens**6.5X High Resolution Detented Zoom Lens
    Magnification:0.7X~4.5X；Video Magnification:26X~172X
    Working EnvironmentTemperature:20℃±2℃, change range < 2℃/hr
    Humidity:30% ~80%RH
    Vibration<0.002g,<15Hz
    Measuring SoftwareIMeasuring3.1
    Operation SystemSupport XP,WIN7,WIN8.1,WIN 10, 32/64 operating system
    LanguageEnglish, Simplified Chinese, Traditional Chinese, other language
    Dimension(W*D*H)838x667x1000mm
    Net Weight185Kg

    *L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

    **Magnification is approximate value, it is related to the dimension of monitor and resolution.
    Customers can choose 0.5X or 2X optional objective, and realize image magnification: 13X~86X or 52X~344X.

    Get more details :Sinowon_High Accuracy 3D Manual Vision Measuring M...
